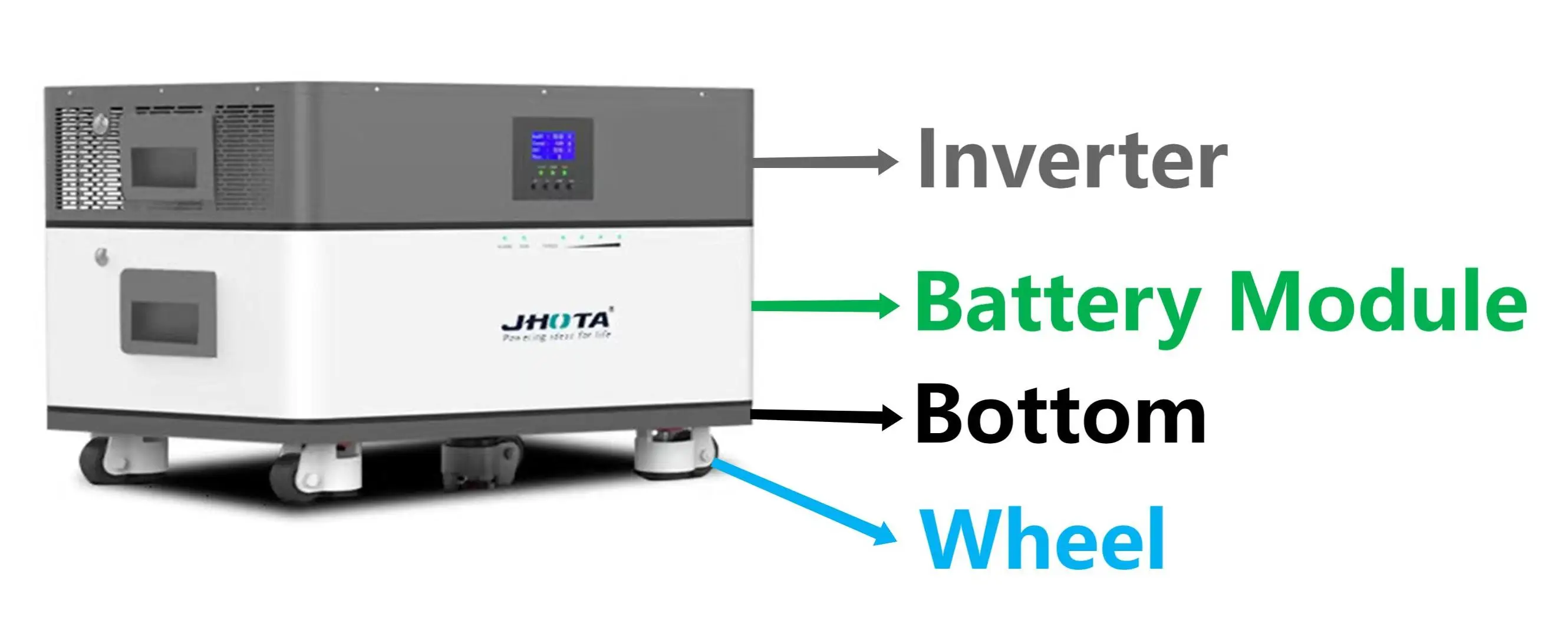

| Model | 5KW Stacked Energy Storage System
(5KWH battery+ 5KW inverter) |
| BATTERY |
| Battery Type | LiFePO4 |
| Battery Energy | 5120Wh |
| Battery Capacity | 100Ah |
| 5KWH Energy Storage System Net Weight | 83kg |
| 5KWH Energy Storage System Net Dimension | 650*460*440mm |
| Battery Rated Voltage | 51.2V (16S) |
| Overcharge protection voltage | 58.4V |
| Overdischarge protection voltage | 40V |
| Maximum Charging Current | 80A |
| Maximum Discharging Current | 100A |
| Packing Part I Weight: Inverter + Base | 37kg |
| Packing Part Il Weight: Battery | 53kg |
| Packing Part I Dimension: Inverter + Base | 735*550*590mm |
| Packing Part Il Dimension: Battery | 745*550*320mm |
| DOD | 80% |
| Designed Life-span | 3000 |
| Four charging modes are optional | Solar only, Mains priority, Solar priority, Hybrid charging |
| Three output modes | 1.Mains priority mode: Power supply sequence: Mains power - Photovoltaic - Battery. 2.Inverter Priority Mode:
Power supply sequence: Photovoltaic - Battery - Mains. 3. Photovoltaic priority mode:
Power supply sequence: Photovoltaic - Mains - Battery. |
| PV CHARGE |
| Maximum PV Open-circuit Voltage | 500Vdc |
| PV Working Voltage Range | 120-500Vdc |
| MPPT Voltage Range | 120-450Vdc (Suggest:300-400Vdc) |
| Maximum PV Input current | 18A |
| Maximum PV Input Power | 5200W (Suggest:1500-2000W) |
| Maximum PV Charing Current | 80A |
| MAINS CHARGING |
| Rated Input Voltage | 220/230Vac (v) 110/120Vac ( ) |
| Input Voltage Range | UPS Mains Mode: (170Vac~280Vac) ± 2%
APL Generator Mode: (90Vac-280Vac) ± 2% |
| Mains Maximum charging Current | 60A |
| Mains Charging Efficiency | >95% |
| INVERTER |
| Output waveform | Pure sine wave |
| Rated output voltage | 230Vac (200 / 208 / 220 / 240Vac) (v) |
| 120Vac (100 / 105 / 110Vac) ( ) |
| Rated Output Power | 5000W |
| Maximum Peak Power | 10000VA |
| Frequency | 60Hz |
| Over temperature protection | 60°C - 70°C |
| Number of parallel / split phases | 1 - 6 pieces |
| On-load Motor Capacity | 4HP |
| Maximum efficiency | >90% |
| No load loss | Non Energy-saving Mode:<50W
Energy-saving Mode: <25W (Manual Setup) |
| GENERAL DATA |
| Storage time / temperature | 6 months @25°C; 3 months @35°C;1 month @45°C; |
| Charging temperature range | -10 ~ 55°C |
| Discharging temperature range | -10 ~ 55°C |
| Operation Humidity | 5% ~ 95°C |
| Noise | 60dB (A) |
| Recommended Operation Environment | Indoor |
| Installation Method | Horizontal |
